Getting Started with Apache Hadoop
Hadoop + Spark practice the most practical machine learning algorithms, Algorithms + Software to create the core characteristics of competitiveness.
Introducing Apache Hadoop
- Hadoop is an open source software framework from the Apache Foundation
- Enables distributed processing on large clusters with thousands of nodes and petabytes of data
- For avoiding significant network I/O, Hadoop uses the move computation to the data approach
- Developments only need to focus on business logic rather than doing the heavy lifting of distributing data, distributing code for parallel processing, and handling failures
- Java-based software framework for distributed processing of data

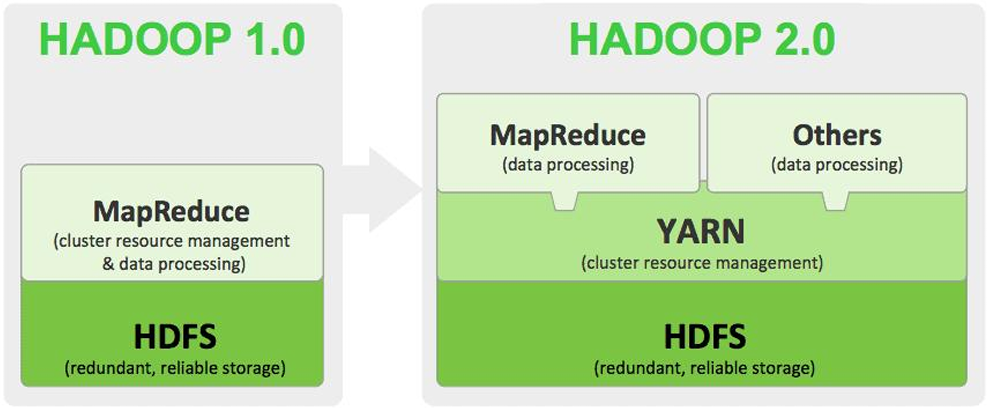

- The version of Apache Hadoop is divided into two generations, the first generation is called Hadoop 1.0 and the second generation is called Hadoop 2.0. The second generation, consisting of 2 versions 0.23.x and 2.x, is completely different from Hadoop 1.0, and is a new set of architecture.

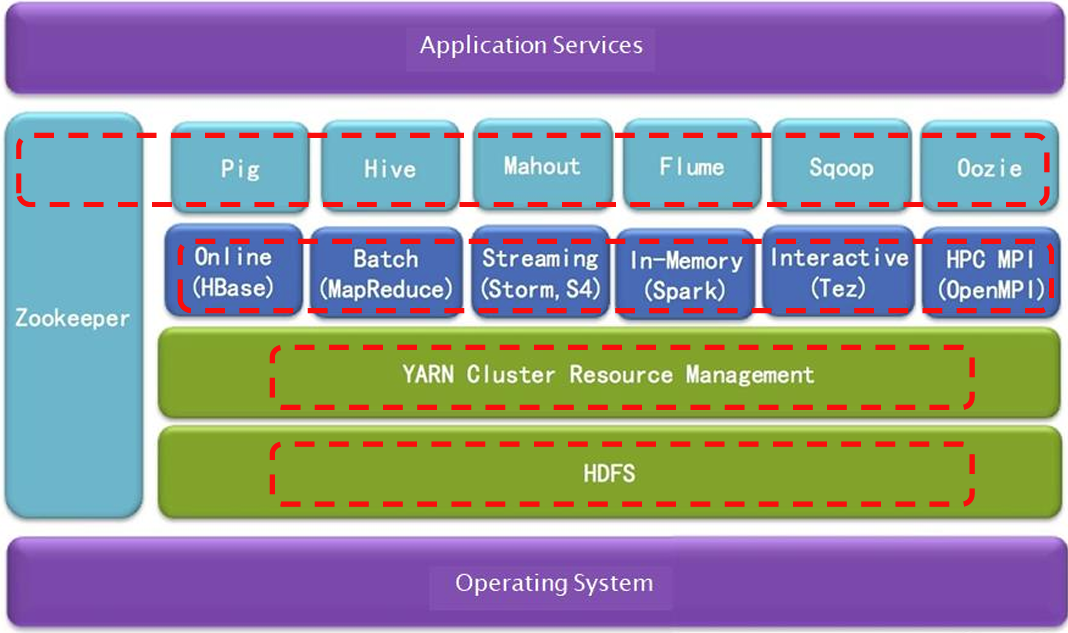

Four parts of Apache Hadoop
- Hadoop Common: provides public applications
- Hadoop Distributed File System(HDFS): used to store data
- Yet Another Resource Negotiator(YARN): used to manage the resources of the clusters
- MapReduce: provides a parallel computing framework for processing data
Typical characteristics of Apache Hadoop
- Commodity
- Robust
- Scalable
- Simple
- Data locality
Hadoop Distributed File System
- HDFS is a distributed filesystem that provided high scalability and reliability on large clusters of commodity hardware
- HDFS are divided into large blocks that are typically 128MB in size and distributed across the cluster
- Each block is replicated (typically 3 times) to handle hardware failures and block placement exposed by NameNode so that computation can be moved to data with MapReduce framework.

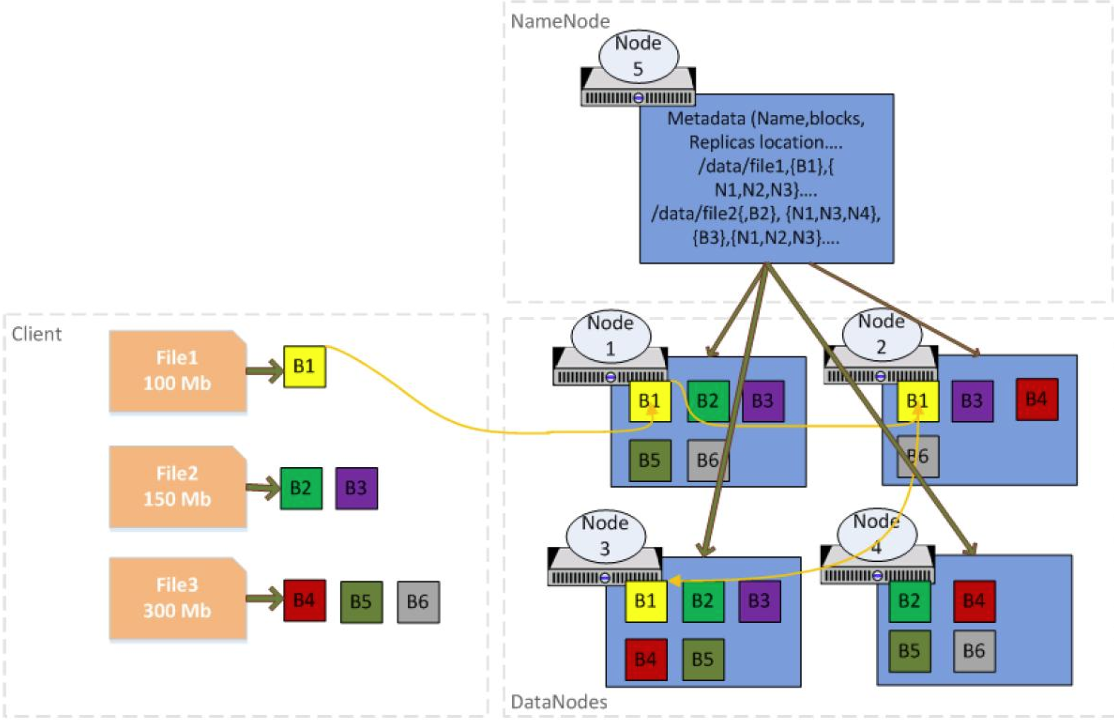

Introducing HDFS
- HDFS uses a master/slave architecture, consisting of a NameNode and several DataNodes
- The NameNode acts as the primary server
- The DataNode is responsible for handling the read and write requests for the stored data
Features of HDFS
Unlimited scalability
- High availability
- Data integrity
- HDFS ACLs
- HDFS rebalancing
- Caching
- APIs
- Data Encryption
- NFS access
- Write Once and Read Many
Storage options on Hadoop
Hadoop can store all the data regradless of what format the data is stored in.
MapReduce Parallel Computing Framework
Introducing MapReduce
- MapReduce (MR) is a framework to write analytical applications in batch mode on terabytes or petabytes of data stored on HDFS.
- An MR job usually processes each block (excluding replicas) of input file(s) in HDFS with the mapper tasks in a parallel manner.
- The MR framework sorts and shuffles the outputs of the mappers to the reduce tasks in order to produce the output.
- The framework takes care of computing the number of tasks needed, scheduling tasks, monitoring them, and re-executing them if they fail. The developer needs to focus only on writing the business logic.
- MR distributes tasks to each node in the cluster and processes large data sets in parallel in a highly fault-tolerant manner.
- In the early MapReduce framework, it was composed of a single JobTracker process running on the master node and a TaskTracker process running on each cluster slave node.
- The master JobTracker is responsible for scheduling all the TaskTasks of the JobJob, which are distributed on different slave nodes.
- The master node monitors the execution of each Task through the heartbeat mechanism and re-executes the previously failed tasks.
