Big Data Lecture 3

Hadoop + Spark practice the most practical machine learning algorithms, Algorithms + Software to create the core characteristics of competitiveness.

Overview of Big Data

Data: A general term for all symbols that can be entered into a computer and processed by a computer program.

Data Types:

• Structured Data: salary sheet, etc
• Semi-Structured Data: XML, JSON files
• Unstructured Data: TXT

The Dawn of the Big Data Era:

• Total Global Data: growing
• Large amount of data per day: Mass amount of data
• 90% of digital content will be unstructured

NoSQL DBMS: Mongo DB, HBase, Neo4j

Big Data refers to datasets that grow so large that it is difficult to capture, store, manage, share, analyze and visualize with those traditional(database) software tools.

The 4V Characteristics of Big data: Volume, Velocity, Variety, Value

3 Phrase of Big Data:

1. Structured content
2. Unstructured content
3. Sensor Based content

General Process of Data Processing:

• Data Acquisition
• Data Management
• Data Analysis
• Data Visualization and Interaction

Different technologies of Big Data and their functions:

Relationship with cloud computing and Artificial Intelligence:

• Cloud computing is the computing infrastructure for big data aggregation and analysis
• Big data analytics objectively supports the development of a range of artificial intelligent tasks

The core of machine generated intelligence: data + computation + association

The meaning of Big Data Analytics

• Big Data Analytics is the process of analyzing Big Data
• provide past, current, and future statistics and useful insights that can be used to make better business decisions
• Big Data analytics is broadly classified into two major categories, data analytics and data science, which are interconnected disciplines
• Data analytics focuses on the collection and interpretation of data, typically with a focus on past and present statistics.
• Data science, on the other hand, focuses on the future by performing explorative analytics to provide recommendations based on models identified by past and present data.

Two main types of Big Data Analytics

Data Analysis: Descriptive Analytics (What Happened?), Diagnostic (Why it happens?) Data Science: Predictive Analytics (What will happen next?), Prescriptive (What should be done to prevent?)

Difference between data analytics and data science

Big Data Analytics & Hadoop and Spark

• Traditional relational database RDBMS uses a Schema on-Write.
• Data is transformed and loaded in an easily accessible (consumable) format, requiring a predefined format/pattern for the data.
• Used to extract, transform and load data, data analysts can only operate within predefined limits.
• Transforming data into a consumable format generally results in losing raw/atomic data
• Traditional relational databases are also more difficult to handle unstructured data.

SOR Database

Schema-on-Read database:

• storing the data in a raw, unmodified format
• Apply/refer to a pattern only when reading data

Life cycle of Big Data analytics

flowchart TB
    A["Identify Business Problem and Outcomes"] --> B
    B["Identify the data needed"] --> C
    C["Data collection"] --> D
    D["Pre-Processing and ETL"] --> E
    E["Performing Analytics"] --> F["Visualize Information"]

1. Identifying the problem and outcomes
   • Identify the business problem and desired outcome of the project clearly
2. Identifying the necessary data
   • Identify the quality, quantity, format, and sources of data
3. Data collection
   • Identify the quality, quantity, format, and sources of data
4. Preprocessing data and ETL
   • Convert data to the desired format or organize data
   • For example, Apache Hive, Apache Pig, and Spark SQL are all tools for pre-processing massive amounts of data
5. Performing analytics
   • Analyze data and relationship between data points
   • This includes descriptive analysis, diagnostic analysis, and predictive analysis.
   • For example: Apache Hive, pig, Impala, Drill, Spark and HBase and other data analysis tools in batch mode
6. Visualizing data
   • the presentation of analytics output in a pictorial or graphical format to understand the analysis better and make business decisions based on data

The role of Hadoop and Spark

• Large-scale data preprocessing
• Exploring large and full datasets
• Accelerating data-driven innovation by providing the Schema-on-Read approach
• A variety of tools and APIs for data exploration

Big Data Science & Hadoop and Spark

A fundamental shift from data analytics to data science is due to the rising need for better predictions and creating better data products.

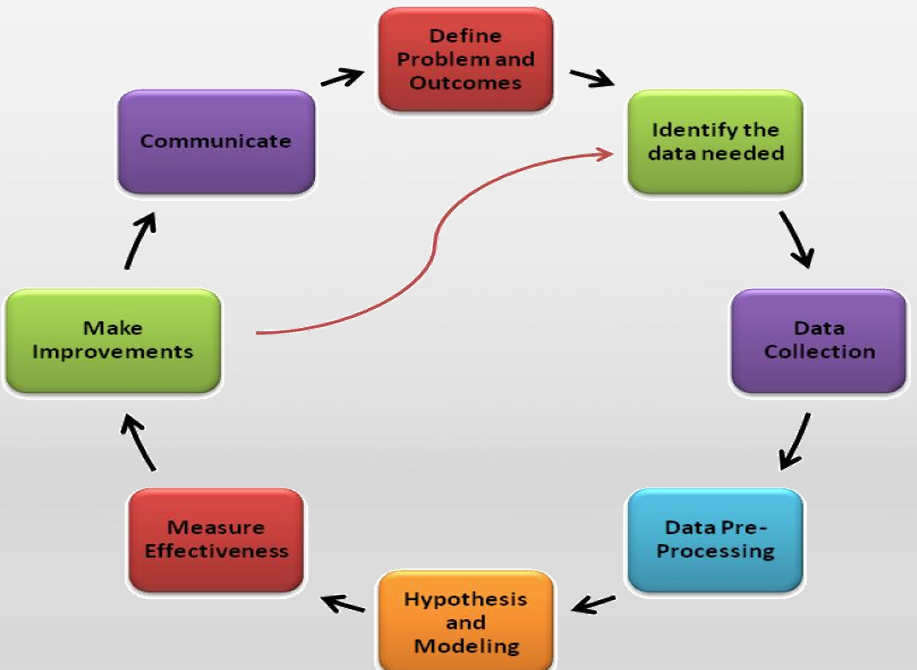

A Typical data science project life cycle

1. Hypothesis and modeling
   • Consider all the possible solutions that cloud match the desired outcome
   • A hypothesis would identify the appropriate model (using machine learning algorithms)
2. Measuring the effectiveness
   • Execute the model by running the identified model against the datasets
   • Measure the effectiveness of the model by checking the results against the desired outcome
3. Making improvements
   • From the measurement results, it is possible to know the areas that need improvement
   • Improvements will need to be tested and measured again to further improve the solution
4. Communicating the results
   • Communication of the results is an important step in the data science project life cycle
   • correlating the story to business problems
   • Reports and dashboards are common tools to communicate the results

The role of Hadoop and Spark(2)

• Hadoop provides you with distributed storage and resource management
• Spark provided you with in-memory performance for data science applications
• A machine learning algorithms library for easy usage
• Scala, Python, and R for interactive analytics using the shell
• using SQL, machine learning, and streaming together

Tools and Techniques for Big Data Analytics

1. Data Collection
   • Apache Flume for real-time data collection and aggregation
   • Apache Sqoop for data import and export from relational data stores and NoSQL databases
   • Apache Kafka for the publish-subscribe messaging system
   • General-purpose tools such as FTP/Copy
2. Data storage and formats
   • HDFS: Primary storage of Hadoop
   • HBase: NoSQL database
   • Parquet: Columnar format
   • Avro: Serialization system on Hadoop
   • Sequence File: Binary key-value pairs
   • XML and JSON: Standard data interchange formats
   • Compression formats: Gzip, Snappy, LZO, Bzip2, Deflate, and others
3. Data transformation and enrichment
   • MapReduce: Hadoop’s processing framework
   • Spark: Compute Engine
   • Hive: Data warehouse and querying
   • Pig: Data flow language
   • Python: Functional programming
   • Crunch, Cascading, Scalding and Cascalog: Special MapReduce tools
4. Data analytics
   • Spark Streaming: Real-time compute engine
   • Spark SQL: For SQL analytics
   • SolR: Search platform
   • Apache Zeppelin: Web-based notebook
   • Jupyter Notebooks
   • Spark-on-HBase connector
   • Programming languages: Java, Scala, and Python
5. Data science
   • Python: Functional programming
   • R: Statistical computing language
   • Mahout: Hadoop’s machine learning library
   • MLlib: Spark’s machine learning library
   • GraphX and GraphFrames: Spark’s graph processing framework and DataFrame adoption to graphs.

use cases for Big Data analytics

• Customer analytics(Deepen relationships and improve revenue)
• Operational analytics(Performance and high service quality are the keys to maintaining customers)
• Data-driven products and services(New products and services that align with growing business demands)
• Enterprise Data Warehouse(Data warehouse architecture optimized to support storage and processing capabilities for massive amounts of data)
• Domain-specific solutions(Provide businesses with an effective way to implement new features or adhere to industry compliance)
